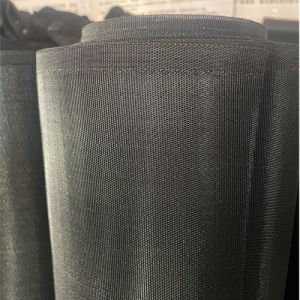

ALKALI RESISTANT FILTER BELT CLOTH

Alkali Resistant Filter Belt Cloth

Alkali Resistant Filter Belt Cloth

Specification

Material polyamide and PPS monofilament
Huatao Model HT121104,HT15905,HT06124
Mainly used for chemical industry,pharmaceutical industry,etc.

Click Here to Send a Message Via Whatsapp Now

Description Inquire

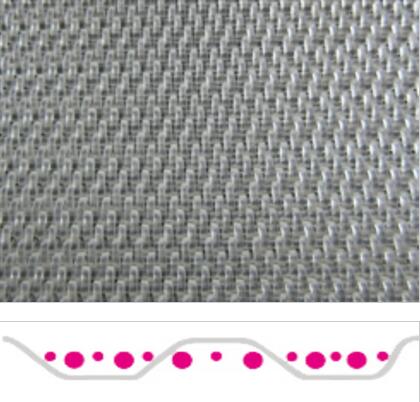

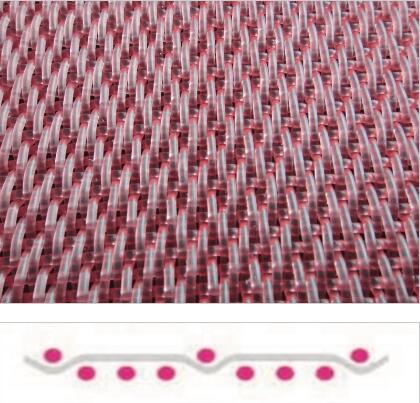

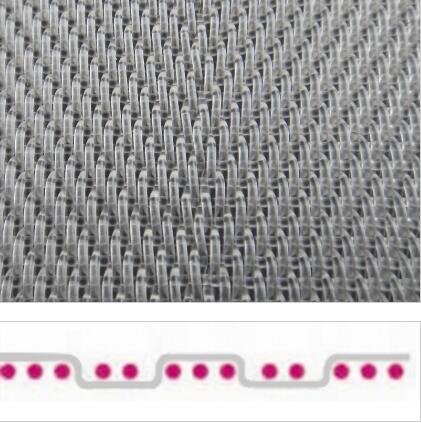

Alkali Resistant Filter Belt Cloth also can be named alkali-resistance filter cloth, or press filter belt.

It is a professional unique design and weaving from polyamide &PPS yarns, mainly working temperature over 100℃, the alkalinity sodium hydroxide filtration press industry, excellent running performance under high tensile strength, and wear resistance.

Feature
1. Higher working temperature (can be used normally at 100℃), strong alkali resistance (such as 20% sodium hydroxide)
2. High tensile strength, high wear resistance, wear resistance is 10-50 times that of ordinary synthetic fibers
3. The surface of the alkali-resistant mesh belt is smoother, and it is easier to peel off from the loaded material
4. The mesh belt is treated with high stability, the structure is stable, and it is not easy to deform after a long time of continuous work.

Application
Widely used in wastewater treatment of the chemical industry, pharmaceutical process, etc.
Alkali-resistant mesh belt series products are mainly used in industries where the use temperature is high (100°C), the alkali content is ≧20% (20% sodium hydroxide), and the tensile strength is high, and the wear resistance is high.
For example, the chemical industry, manufacturing industry, etc.

Technical Parameters

Model

Warp filament diameter
mm

Weft filament diameter
mm

Warp Density
thread/cm

Weft density
thread/cm

Surface tensile strength
N/cm

Joint tensile strength
N/cm

Weight
Kg/Sqm

Thickness
mm

Air Permeability
CFM 127/pa

121104 0.90 1.1 12.8 4.0 1600 900 1.57 3.05 600
15905 0.90 0.90 15.3 5 1600 900 2.0 2.77 425
061204 1.20 1.20 7 4.3 1600 900 1.9 2.9 431
121201 1.05 1.20 12.6 7.4 1600 900 2.6 3.5 659
16903 0.70 0.90 16.3 5 1600 900 1.5 2.1 470
