Antistatic Synthetic Mesh Belt

Specification

Polyester Material
Antistatic monofilament material, carbon wire or bronze wire
Model HT31505 HT14804,HT14804-1
Mainly used for MDF (Medium-density fibreboard ) board and fiberboard process industry, chemical fiber and drying for papers,spunbond nonwoven fabric production,ect

Click Here to Send a Message Via Whatsapp Now

Inquire

A^-A⁺

Description Inquire

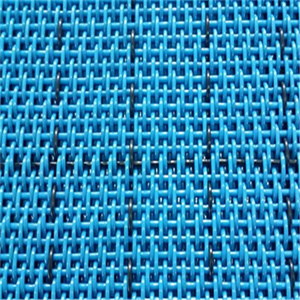

Introduction of Antistatic Synthetic Mesh Belt
Antistatic synthetic mesh belt can be named as polyester conductive conveyor belt, antistatic process belt, polyester mesh belt with carbon wire, etc

Antistatic synthetic mesh belt is a professional unique design and weaving from Polyester fiber & bronze wires or carbon wire, mainly used for MDF (Medium-density fibreboard ) board and fiberboard process industry, chemical fiber and drying for papers,spun-bond nonwoven fabric production, etc. Act the continuous press filter belt of forming press and other applications with the antistatic requirements.

Technical Parameters of Antistatic Synthetic Mesh Belt

Model	warp filament diameter mm	weft filament diameter mm	warp density thread/cm	weft density thread/cm	surface tensile strength N/cm	joint tensile strength N/cm	weight Kg/m2	thickness mm	CFM 127Pa	Electric conductivity Ω*cm
31505	0.40	0.50	33	9	1600	900	0.80	1.30	186	5*10³
14804	0.65	0.80	14.8	7.2	2000	900	1.6	1.95	430	5*10³
14804-1	0.65	0.80	14.8	7.2	2000	900	1.6	1.95	430	5*10³
4106	0.50	0.30/0.70	22.8		2200	900	1.5	1.80	500	5*10³
14708	0.64	0.70	15	8	2000	900	1.03	1.78	700	6*10³
12708	flat wire 0.46×0.68	0.70	14.1	7.3	2000	900	0.90	1.76	500	6*10³

Application of Antistatic Synthetic Mesh Belt
1. Antistatic mesh belt is widely used in airlaid, spunlaid, wetland & dry laid nonwoven forming, wood fiberboard, dust-free paper, chemical fiber, and other industries.
2. Used as a continuous pre-pressing mesh belt in chemical fiber, pulp dry papermaking, fiberboard, and other industries.
3. In applications, such as spunbond, meltblown, card, and wetlaid nonwovens, the conductive fiber ensures reliable electrostatic discharge.
4. Characteristics of the antistatic mesh belt can also be used in environmental protection, rubber, chemical industry, and other anti-static industries.
