Specification
Material : 100% Polyester
Type: Spiral Press Filter Belt
Spiral Loop:Small loop,Middle loop,Big Loop

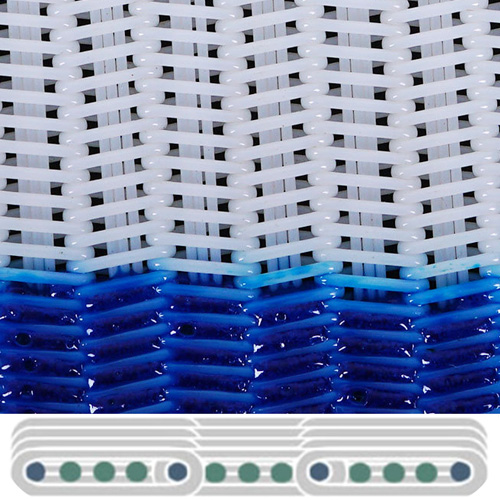

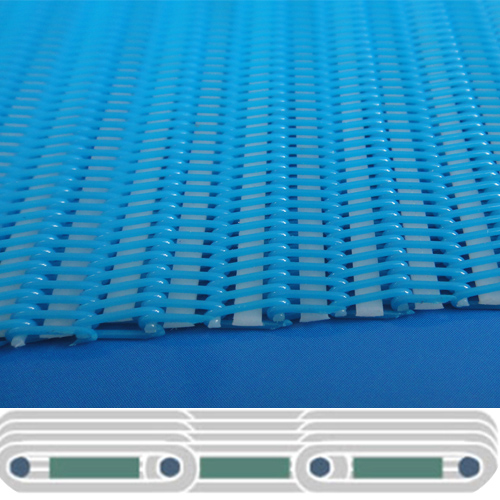

Filling Wire:Round monofilament type 1/2/3/4pcs,Flat monofilament type,carbon wire type
Usage : Various Belt Press Filter Machine

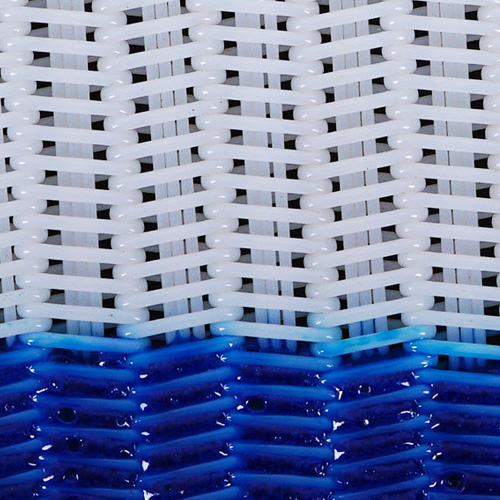

Polyester Spiral Mesh Belt, also named Polyester Spiral Belt, Spiral Link Dryer Screen spiral synthetic fabrics, polyester spiral link dryer fabric(SLDF), polyester spiral dryer screen. It can be divided into small loop, medium loop, large loop, etc
Features
Large air permeability with a long lifetime. Flat surface and Good Strength.
High-temperature resistance, abrasion resistance, and aging resistance.
Applications
Spiral fabric belts with filling yarns are mainly used as filter cloth, drying media, or conveyor belts for solid-liquid separation in the belt press filter.
We supply a wide variety of belts for industrial filtration or for environmental applications, choosing the material according to the characteristics of the product to be filtered, the work pressure, temperature, etc. that allows for achieving a perfect solid-liquid separation. The type of material for a belt can vary depending on the customer's specifications and applications.
1. Solid-liquid separation & drying
2. Effluent treatment (wastewater, sewage, sludge de-watering)
3. Pharmaceutical & chemical industry
4. Mining & mineral industry
5. Pulp & paper industry
6. Food industry
Technical Parameters
Model | Warp thread diameter mm | Weft thread diameter mm | The specification of single-loop | Weight kg/m2 | Thickness mm | Air permeability CFM/127Pa |
Large loop | 0.9 | 1.1 | LW 4.0x8.0mm | 1.7 | 3 | 900cfm-1250cfm |
Medium loop | 0.7 | 0.9 | LW 3.8x6.8mm | 1.4 | 2.5 | 900cfm-1250cfm |
Small loop | 0.5 | 0.7 | LW 3.2x5.2mm | 1.1 | 1.9 | 900cfm-1250cfm |
